Penetration testing metrics should show whether validated exposures are being reduced, fixes are being verified, recurring weaknesses are declining, and important systems are actually being tested. Raw finding volume can help describe activity, it is not enough to show security improvement when it is separated from validation, severity, exploitability, asset context, remediation status, and trend.
A practical metrics program starts with the penetration test report, then turns scope, findings, remediation records, retest outcomes, and recurrence into decision-ready reporting. NIST’s technical testing guidance supports connecting test findings to mitigation actions and tracking testing results over time to understand security trends. NIST SP 800-115
What penetration testing metrics should actually prove
Penetration testing metrics are measurements derived from test scope, findings, remediation work, retesting, and repeated issue patterns. They should answer operational questions such as:
- Which confirmed exposures remain open?
- Are critical and high-risk findings being fixed and verified?
- Are the same vulnerability classes recurring?
- Was the test scope broad enough to make the results meaningful?
- Which teams, systems, or issue classes need attention next?

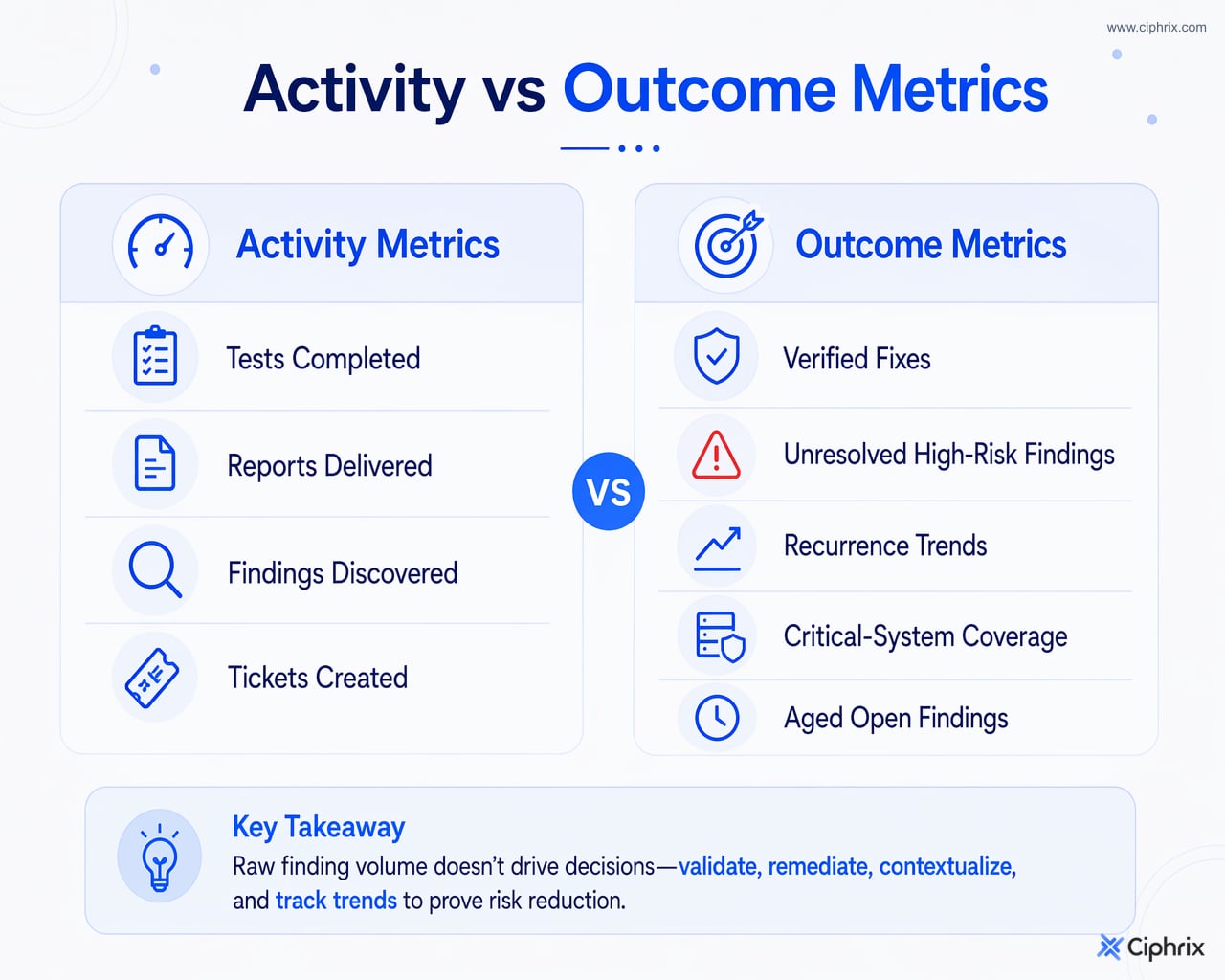

Activity metrics describe work performed: tests completed, reports delivered, vulnerabilities discovered, or tickets created. Outcome metrics describe whether exposure is changing: verified fixes, unresolved high-risk findings, recurrence trends, coverage of critical systems, and aged open findings.
Raw counts are especially easy to misread. Not just a bigger number. A higher count may mean broader scope, better testing, weaker controls, duplicated scanner output, or real exposure growth. OWASP guidance cautions that automated-tool output should be reviewed rather than treated as equivalent to confirmed exposure, with attention to false positives and test-scope limits. OWASP Web Security Testing Guide
Use one operating rule: every metric should support a decision by an executive, program owner, or technical team.
The core penetration testing metrics worth tracking
The following table is editorial guidance for designing a metrics model. The calculation rules are examples, not universal standards. The main thing is to define the denominator, status rules, timestamp rules, and recurrence boundaries before using them in leadership reporting.
| Metric | What it proves | Example calculation rule | Required data fields | Owner | Cadence | Audience | Common caveat |
|---|---|---|---|---|---|---|---|
| Test coverage | Whether the agreed scope was actually tested | Tested in-scope assets ÷ defined in-scope assets | Asset inventory, test scope, tested asset list, criticality | Security program owner | Per test and trend review | Executives, program owners | Coverage is only meaningful if the inventory and scope are accurate. Flag critical assets not tested. |
| Validated exposure count | How many findings meet agreed validation criteria | Count findings confirmed by tester evidence, reproducibility, manual verification, or agreed triage outcome | Finding ID, validation method, evidence, affected asset, status | Security testing lead | Per report and trend review | Program owners, executives | Do not treat raw scanner output as equivalent to validated exposure. |
| Findings by severity and exploitability | Which findings deserve priority | Group by severity and exploitability or validation status | Severity, exploitability status, affected system, business context | Security program owner | Per report and remediation review | All audiences | Severity alone is incomplete. FIRST notes prioritization should also consider exploit maturity, local controls, and affected-system importance. FIRST CVSS v4.0 |
| Open critical/high findings | Current unresolved high-risk exposure | Count unresolved critical/high findings; optionally segment by age or owner | Severity, status, owner, due date, affected asset | Security program owner and asset owners | Remediation review | Executives, program owners | Keep accepted risks separate from remediated findings. |
| Finding age / aging findings | How long unresolved exposure has persisted | Current date − agreed start timestamp for each unresolved finding | Start timestamp, status, severity, owner | Finding owner | Remediation review | Program owners, technical teams | Use the same start event consistently. |
| Mean time to remediate or time-to-fix | Speed of remediation workflow | Average time between agreed start event and agreed closure event | Start timestamp, closure timestamp, severity, owner, disposition | Security program owner | Trend review | Program owners, executives | Operational ticket closure and verified risk resolution may need separate metrics. |
| Closure rate | Remediation throughput | Closed findings ÷ total findings due, or closed findings ÷ findings opened in period | Finding status, opened date, due date, closed date, disposition | Security program owner | Reporting period review | Program owners, executives | Define whether “closed” means ticket closed, fix deployed, verified fixed, or accepted risk. |
| Retest verification rate | Whether submitted fixes actually passed validation | Findings that passed retest ÷ findings submitted for retest | Retest requested date, retest result, evidence, failed-retest reason | Security testing lead | Retest cycle | Program owners, technical teams | Failed retests should remain visible. NIST assessment guidance supports distinguishing verified remediation from items simply marked complete. NIST RMF Assess FAQs |
| Recurrence rate | Whether root causes are being addressed | Repeated findings or repeated vulnerability classes ÷ total relevant findings over a defined period | Finding class, asset, owner, test date, root cause, recurrence flag | Security program owner and engineering leads | Across tests | Program owners, technical teams, executives | Define recurrence by asset, application, team, or vulnerability class before trending it. |
| False positive or finding quality rate | Usefulness and reliability of findings | Disputed or invalid findings ÷ total findings, using agreed criteria | Disposition, dispute reason, validation evidence, tester notes | Security testing lead | Per test and vendor/process review | Program owners | Use this to improve validation and reporting, not to punish testers. |

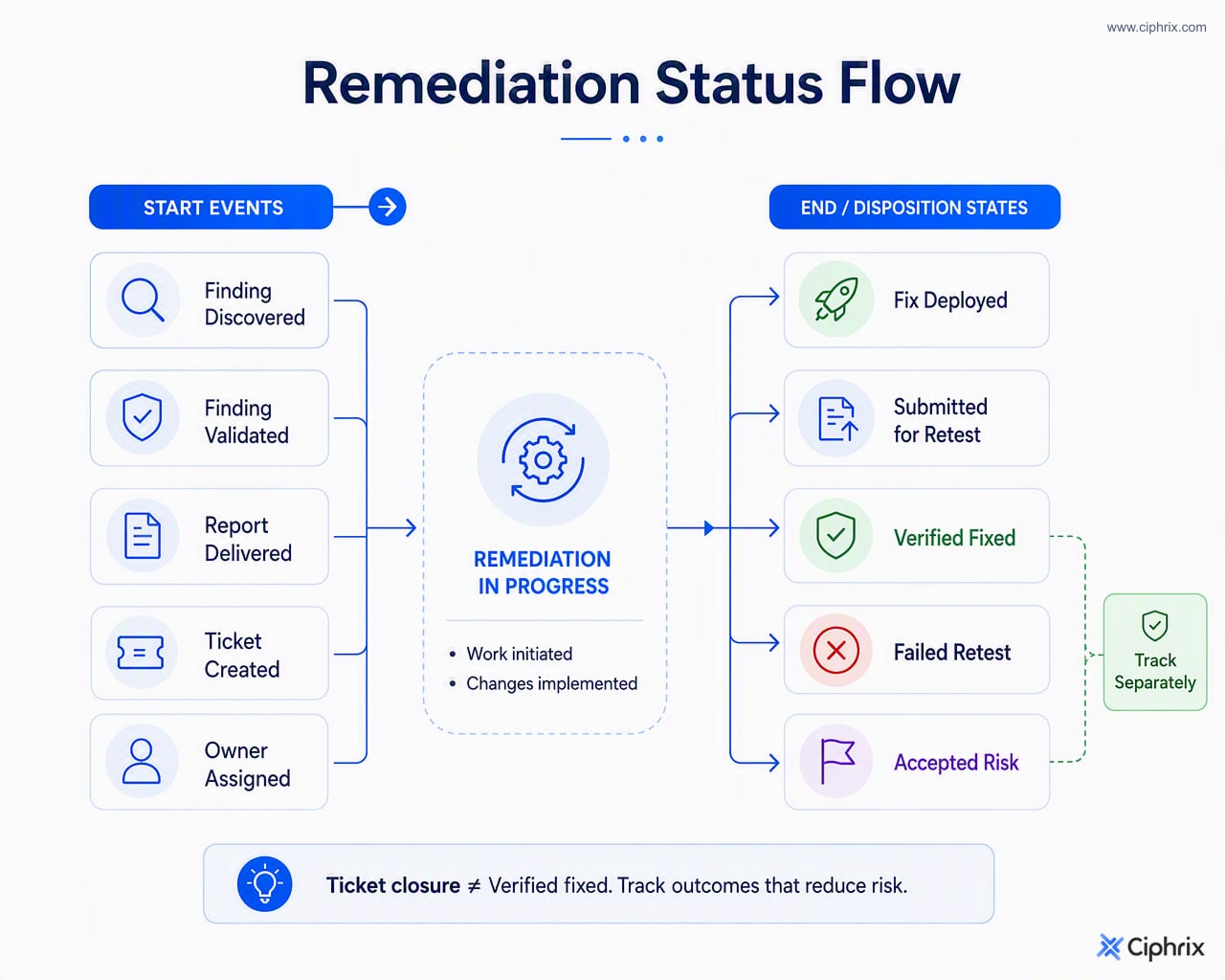

How to calculate remediation metrics without misleading yourself
Remediation metrics are where reporting often becomes unreliable. “Mean time to remediate” sounds precise, but it can mean very different things depending on the timestamps used.
Common start events include:
- finding discovered
- finding validated
- report delivered
- ticket created
- owner assigned
Common end events include:
- fix deployed
- ticket marked complete
- retest passed
- risk formally accepted
No single timestamp model works for every organization. The important rule is to document one start event and one end event for each metric, then apply them consistently. If you change the rule, do not compare the old and new trend lines without noting the change.
For operational tracking, ticket creation to ticket completion may be useful because it shows workflow speed. For risk-reduction reporting, “retest passed” or “risk formally accepted” is usually a stronger endpoint than “fix deployed,” because it distinguishes implementation from verified outcome. That sounds like a rule, but it is more of a reporting boundary. NIST assessment guidance supports reassessment as a way to verify that deficiencies were corrected and that controls produce the intended outcome. NIST RMF Assess FAQs
Track these states separately:
- Submitted for retest: the owner believes remediation is ready to validate.
- Verified fixed: the finding passed retest or agreed verification criteria.
- Failed retest: the remediation did not resolve the issue or evidence was insufficient.
- Accepted risk: the organization chose not to remediate under its governance process.
Accepted risk is not the same as remediation. NIST’s OSCAL POA&M model shows that tracking records can distinguish remediation planning and status from dispositions such as false-positive identification and risk acceptance. NIST OSCAL POA&M
Which metrics executives, program owners, and technical teams need
The same source data should produce different views. Executives need risk movement and decisions. Program owners need control of the remediation process. Technical teams need enough detail to fix and validate.
| Audience | Best metric view | Decision it supports |
|---|---|---|
| Executive or board view | Validated critical/high exposures open; trend in unresolved high-risk findings; remediation progress against agreed priorities; coverage of critical business systems; recurrence trend for major issue classes; accepted or overdue risks | Whether exposure is moving in the right direction, whether key systems were covered, and which residual risks need governance attention |
| Security program owner view | Coverage by asset group or business unit; findings by severity, exploitability, and owner; time-to-fix by severity; closure and retest verification rates; recurrence by vulnerability class; aging findings and blockers | Where remediation is stuck, which teams need support, and whether repeated weaknesses require root-cause work |
| Technical team view | Assigned findings; reproduction details; affected components; exploit path; remediation due dates; retest status; failed retests; repeated root causes; recommended fix patterns | What to fix next, how to reproduce it, how to prove the fix, and which engineering practices need improvement |
This translation prevents a common reporting failure: sending leadership a long issue list while giving engineering only aggregate charts. Both groups need the same truth, but not the same level of detail. That sounds obvious, but it is where reporting gets a bit messy.

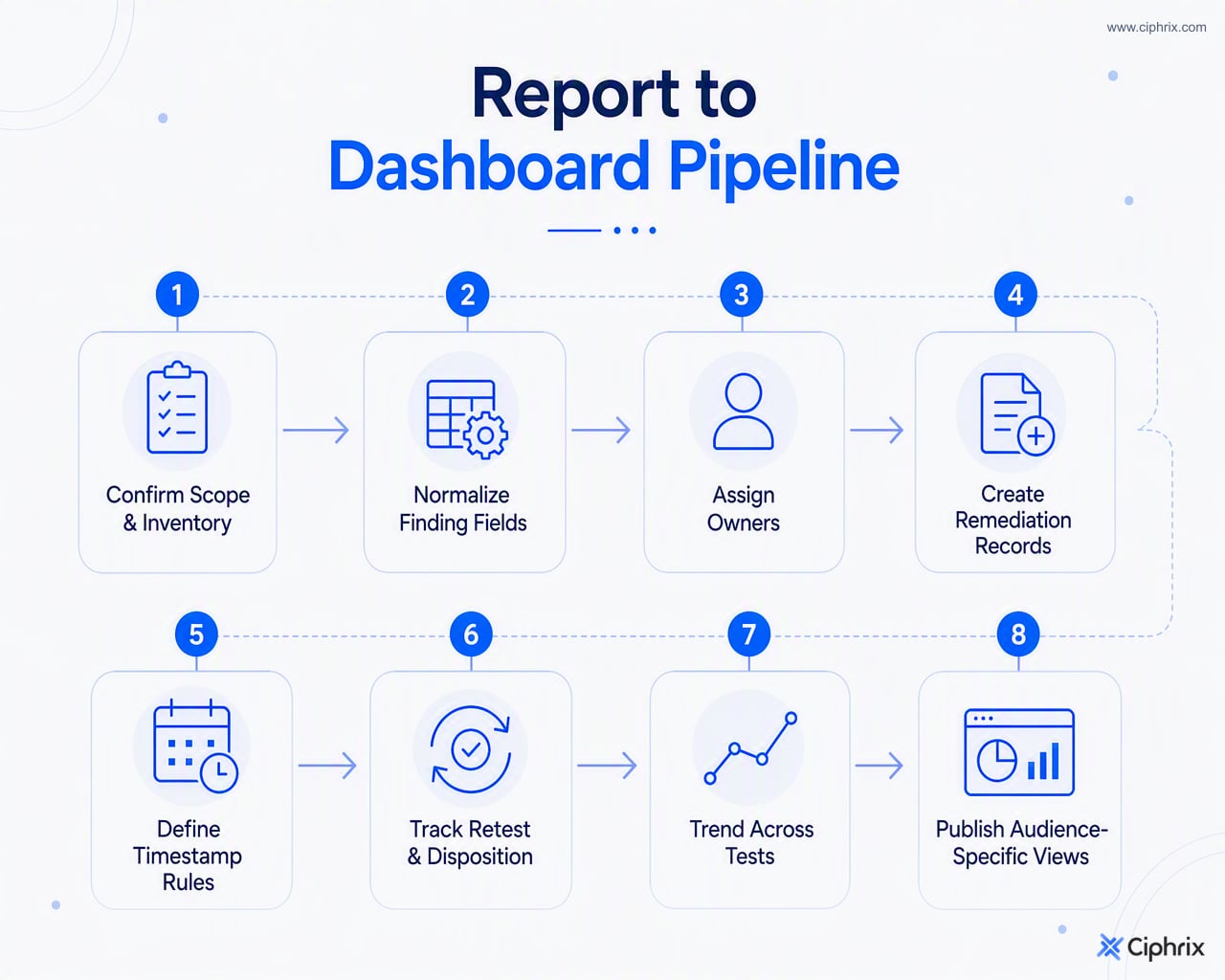

From penetration test report to metrics dashboard
A useful dashboard is built from normalized report data, not from a copied executive summary. Use this workflow:
- Confirm scope and asset inventory. Record what was in scope, what was tested, and which critical systems were excluded.
- Normalize finding fields. Capture finding ID, title, severity, affected asset, vulnerability class, evidence, exploitability or validation criteria, and scope notes.
- Assign owners. Every open finding needs a responsible owner or queue.
- Create remediation records. Link each finding to a ticket, due date, status, and remediation evidence.
- Define timestamp rules. Record the agreed start and end events for age, time-to-fix, and verified remediation.
- Track retest and disposition. Separate verified fixed, failed retest, accepted risk, duplicate, and false positive.
- Trend across tests. Compare recurrence, coverage, aging, and open high-risk exposure only when scope and validation criteria are comparable.
- Publish audience-specific views. Use the same dataset, but different summaries for leadership, program management, and technical remediation.
Sample penetration testing metrics dashboard
The following scorecard uses illustrative data only. It is not a benchmark or target.
| Dashboard item | Illustrative value | How to read it |
|---|---|---|
| Defined in-scope assets | 80 | Baseline scope for the test cycle |
| Tested in-scope assets | 68 | Assets with completed testing activity |
| Coverage | 85% | 68 ÷ 80; review the 12 untested assets before interpreting trend |
| Validated exposures | 42 | Findings meeting agreed validation criteria |
| Validated findings by severity | Critical: 3; High: 11; Medium: 20; Low: 8 | Prioritization input, not a complete business-risk rating |
| Exploitability status | Confirmed exploitable: 18; manually validated non-exploit chain: 16; requires owner review: 8 | Helps avoid severity-only prioritization |
| Open critical/high findings | 7 | Current unresolved high-priority remediation backlog |
| Aging open findings | >30 days: 9; >60 days: 4; >90 days: 1 | Shows unresolved exposure duration using the agreed start timestamp |
| Median time-to-fix, verified fixed only | Critical: 14 days; High: 24 days; Medium: 38 days | Uses retest-passed date as the endpoint in this example |
| Closure rate for reporting period | 62% | 26 closed ÷ 42 opened or due, depending on the chosen model |
| Retest verification rate | 81% | 21 passed retest ÷ 26 submitted for retest |
| Failed retests | 5 | Keep visible until corrected and revalidated |
| Recurrence | 6 repeated findings across 3 vulnerability classes | Indicates root-cause work may be needed |
| Accepted risks | 3 | Separated from remediated findings; each requires documented disposition |
| False positives / invalid findings | 2 | Used to improve validation criteria and report quality |
A dashboard like this gives leaders a short narrative, short enough to act on: “Coverage was 85%, seven critical/high findings remain open, four findings are older than 60 days, five fixes failed retest, and six issues are recurring across three classes.” That is more decision-ready than “42 vulnerabilities were found.”
Common penetration testing metric mistakes to avoid
Avoid these patterns when turning reports into metrics:
- Counting findings discovered as proof of improvement. Discovery is activity; improvement requires remediation, verification, and trend context.
- Mixing scanner output with validated findings. Use scanner data as input to review, not as a confirmed exposure count.
- Reporting severity without exploitability or asset context. A severity label helps classify, but prioritization also needs exploit maturity, local controls, and system importance.
- Changing MTTR timestamps midstream. If one quarter starts at report delivery and another starts at ticket creation, the trend is not comparable.
- Counting unverified fixes as remediated. Track “fix deployed,” “ticket closed,” and “verified fixed” separately where possible.
- Hiding failed retests. Failed validation is useful evidence; it shows where remediation quality or requirements were unclear.
- Treating accepted risk as closed without qualification. Accepted risk should remain visible as a disposition, not disappear into remediated totals.
- Reporting coverage without a reliable inventory. A percentage is weak if the denominator is incomplete.
- Overloading executives with technical issue lists. Leadership reporting should focus on exposure, trend, decisions, and exceptions.
- Creating opaque composite risk scores. If you use a score, show the formula and inputs; otherwise, it becomes a vanity number.
How to make penetration testing metrics operational
Penetration testing metrics work when they become part of the remediation workflow, not a spreadsheet built after each report. Define the fields, owners, status values, timestamp rules, retest evidence, and review cadence before the next test closes.
At minimum, keep these records consistent:
- finding ID and affected asset
- validation criteria and evidence
- severity, exploitability, and business context
- owner and remediation status
- start, due, closure, and verification dates
- retest result and failed-retest reason
- recurrence marker and vulnerability class
- accepted-risk or false-positive disposition
Teams using Ciphrix as part of their security and compliance operating model should apply the same principle: keep validated security work, remediation evidence, ownership, and control evidence connected so metrics can be reused rather than rebuilt for each review.
The best penetration testing metrics do not reward bigger reports. They show whether validated exposure is being reduced, whether fixes are verified, whether recurring weaknesses are being addressed, and whether leadership has the evidence needed to act, or close enough to it.
