Many teams can name OWASP, PTES, or NIST, but still struggle with the practical question: which approach should govern a real penetration test, what should be combined, and what evidence should come out of the work?
A penetration testing methodology is the structure that turns authorized security testing into a controlled engagement: scope, rules, test depth, evidence, reporting, remediation, and validation. The right choice is rarely one acronym, a web application test might use PTES for lifecycle structure, OWASP WSTG for application testing depth, and NIST-style rules of engagement for governance. A payment-card environment may need additional PCI-specific evidence expectations.
What a Penetration Testing Methodology Is—and What It Is Not
A methodology is the practical operating model for a test: how it is planned, authorized, conducted, evidenced, reported, and validated within agreed constraints. NIST SP 800-115 presents penetration testing through planning, discovery, attack, and reporting phases, and includes rules-of-engagement considerations such as scope, permitted activities, prohibited activities, and required approvals.
That is different from adjacent terms:
| Term | Practical meaning |
|---|---|
| Methodology | The structured way the engagement is governed and executed. |
| Framework or standard | A reference that may define process, terminology, scope, or testing expectations. Teams still need to apply it to a specific engagement. |
| Checklist | A useful control aid, but not a full methodology unless tied to authorization, scope, evidence, reporting, and validation. |
| Toolset | Scanners, proxies, exploit validation tools, and scripts may support testing, but tools do not define governance or quality. |
The distinction matters because a list of tests does not prove that a penetration test was authorized or risk-managed. Or repeatable.
Penetration testing also sits between vulnerability assessment and red teaming. Vulnerability scanning identifies hosts, attributes, and associated vulnerabilities, while penetration testing actively validates whether weaknesses can be circumvented or combined under defined constraints, according to NIST’s penetration testing definition and SP 800-115. A red team is broader: NIST describes an authorized red team as emulating an adversary to demonstrate the impact of successful attacks and improve defensive assurance.

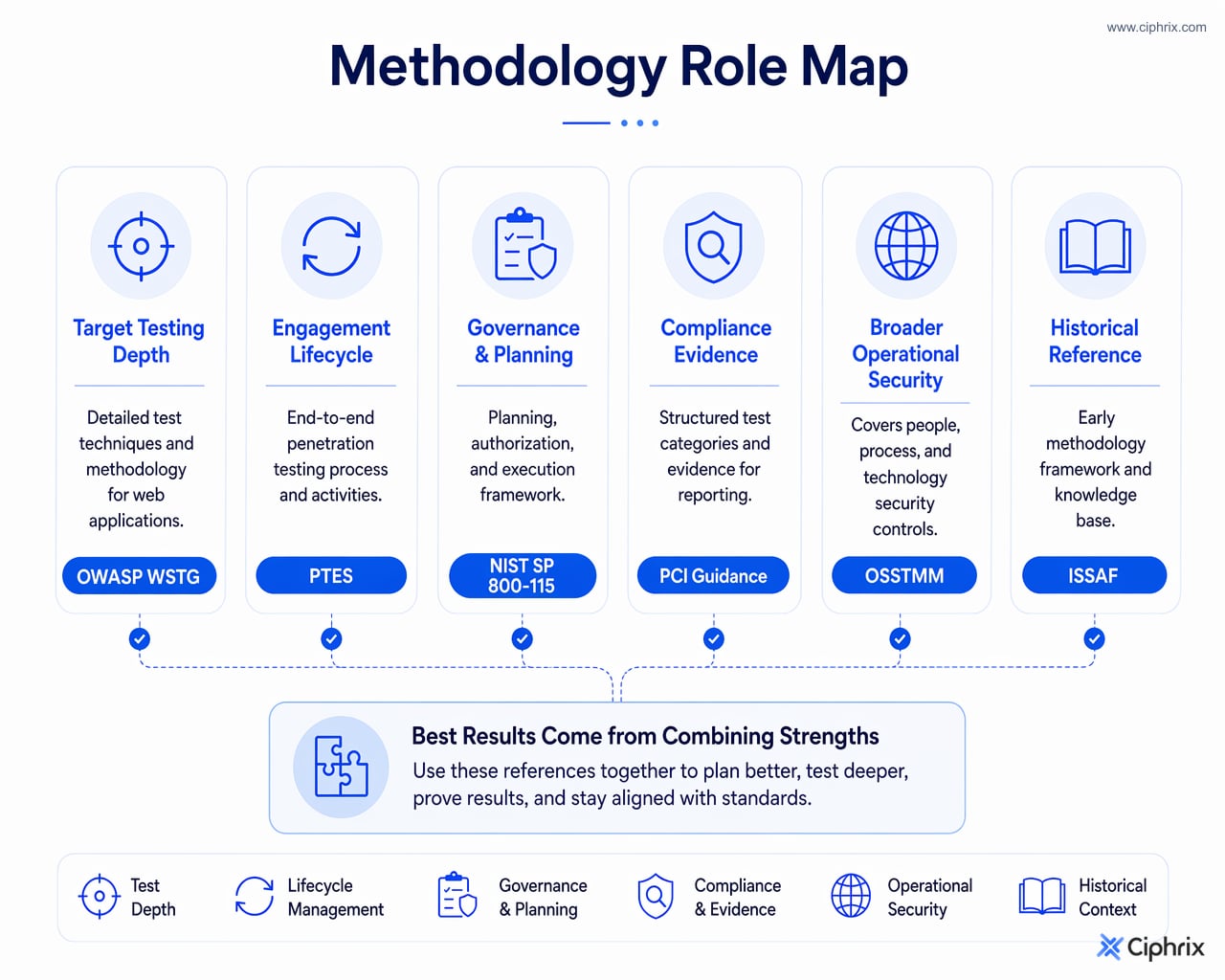

The Major Penetration Testing Methodologies and Standards Teams Should Know
These references are not always substitutes. They often play different roles in the same engagement.
| Reference | Practical use | Best treated as |
|---|---|---|
| OWASP WSTG | The OWASP Web Security Testing Guide provides a web application security testing methodology focused on finding evidence of vulnerabilities from deficient application security controls. | Depth reference for web applications and web services. |
| PTES | PTES organizes a test from pre-engagement through intelligence gathering, threat modeling, vulnerability analysis, exploitation, post-exploitation, and reporting. Its reporting guidance separates executive and technical reporting. | Lifecycle and reporting structure. |
| NIST SP 800-115 | NIST SP 800-115 provides guidance for planning and conducting technical security tests and assessments, analyzing findings, and developing mitigation strategies. | Assessment governance, planning, and reporting discipline. |
| OSSTMM | OSSTMM 3 describes a methodology for characterizing operational security across human, physical, wireless, telecommunications, and data-network channels. | Broader operational-security testing model where scope extends beyond an app or network-only test. |
| PCI guidance | PCI SSC’s Penetration Testing Guidance addresses pre-engagement, engagement, post-engagement, tester qualifications, application- and network-layer testing, segmentation checks, and reporting. | Payment-card environment evidence guidance when applicable. |
| ISSAF | ISSAF is an older draft-era structured security-assessment reference whose stated objectives include an end-to-end assessment reference and baseline process. | Historical reference; verify current maintenance and suitability before using it for a new program. |
The practical pattern is to separate lifecycle, target depth, governance, and compliance evidence. PTES can help structure the engagement, OWASP can deepen web and web-service testing, NIST can inform assessment management and rules of engagement, and PCI guidance can shape evidence expectations for payment-card scope, if that scope is part of the work.

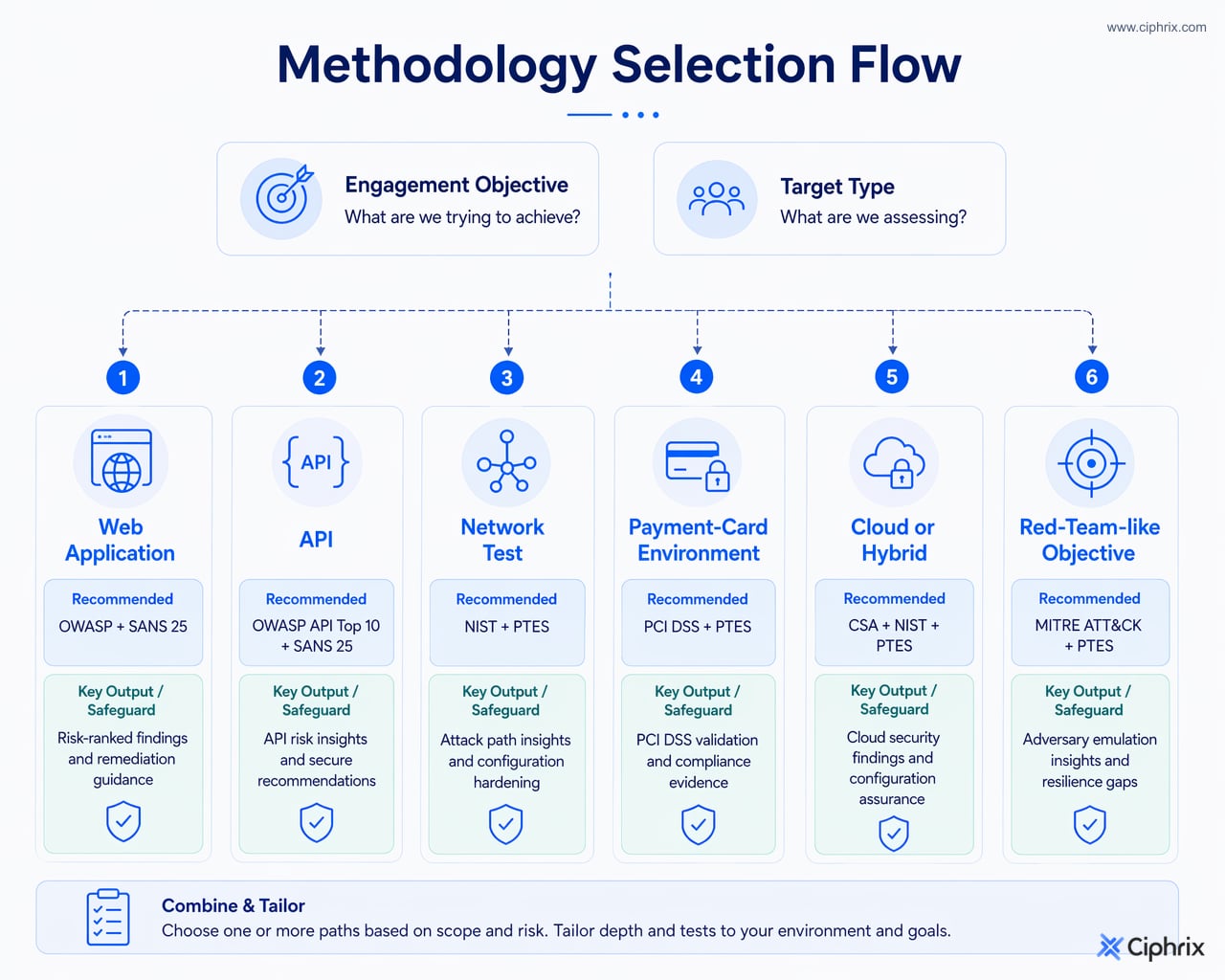

How to Choose or Combine Methodologies for a Real Engagement
Choose based on the target, objective, authorization boundaries, production constraints, and required deliverables. The table below is editorial guidance, not an official scoring model or universal rule.
| Scenario / target | Primary objective | Best-fit methodology or combination | Why it fits | Required outputs or safeguards |
|---|---|---|---|---|
| Web application or web service test | Validate exploitable application weaknesses and remediation priorities. | PTES for lifecycle, OWASP WSTG for application testing depth, NIST-style rules of engagement for governance. | PTES gives engagement structure; OWASP WSTG gives application-specific depth. | Signed scope, test accounts or access assumptions, allowed test windows, evidence of exploitable findings, technical remediation guidance, retest status if included. |
| Internal or external network penetration test | Validate whether network weaknesses can be exploited within agreed limits. | PTES or NIST SP 800-115 as the primary lifecycle and assessment reference. | These references support structured planning, discovery, attack validation, reporting, and mitigation planning. | Asset scope, prohibited actions, escalation contacts, evidence standards, severity rationale, remediation recommendations. |
| Payment-card environment assessment | Produce security evidence for applicable payment-card scope. | PCI penetration testing guidance alongside a lifecycle methodology such as PTES or NIST. | PCI guidance addresses pre-engagement, engagement, post-engagement, network/application testing, segmentation checks, and reporting considerations. | Clear cardholder-data-environment scope, segmentation assumptions where relevant, full report, evidence suitable for the intended compliance review. |
| Cloud or hybrid environment assessment | Test agreed systems, agreed identities, interfaces, and configurations without disrupting production. | NIST or PTES for governance and lifecycle; add target-specific test guidance based on the services in scope. | Cloud and hybrid tests depend heavily on authorization boundaries, provider constraints, identity scope, and data sensitivity. | Written authorization, environment exclusions, approval gates for high-risk actions, evidence handling rules, remediation owners. |
| Pre-audit security assurance test | Identify issues before customer review, audit readiness work, or internal assurance reporting. | NIST for assessment planning and mitigation discipline; PTES for reporting structure where exploitation validation is in scope. | The engagement needs clear evidence, impact explanation, and mitigation tracking rather than ad hoc findings. | Objectives, assumptions, methods, executive summary, technical findings, remediation plan, retest plan where agreed. |
| Broader adversary simulation or red-team-like objective | Test detection, response, and resilience against adversary behavior. | A separate red-team methodology may be needed; do not force a standard penetration test model to cover the whole objective. | Red teaming has broader defensive assurance goals than a scoped penetration test. | Separate authorization, safety controls, communications plan, detection and response objectives, executive debrief. |
A useful rule: start with the engagement lifecycle, then add target-specific depth. If the target is a web application, add OWASP WSTG. If the driver is payment-card evidence, incorporate PCI guidance. If the assessment is broader than systems and applications, consider whether an operational-security model such as OSSTMM is appropriate for the authorized scope.

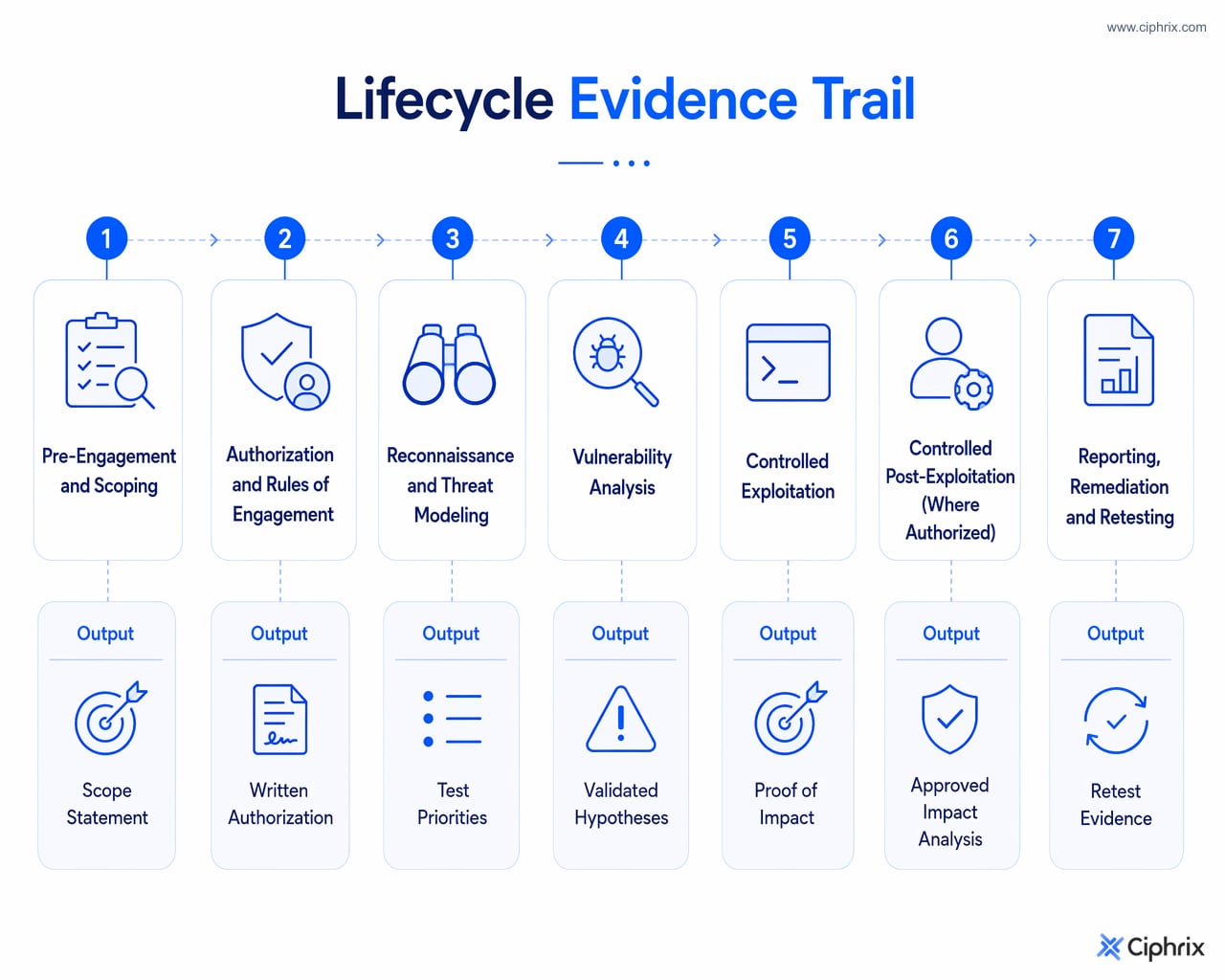

The Lifecycle of a Methodology-Backed Penetration Test
A methodology becomes useful when each phase produces something the team can approve, inspect, or act on.
1. Pre-engagement and scoping
The team defines objectives, in-scope and out-of-scope systems, stakeholders, test windows, access assumptions, data sensitivity, and escalation paths. The output should be a scope statement clear enough that testers, system owners, and business stakeholders know what is authorized.
2. Authorization and rules of engagement
Before active testing, the engagement should document written authorization, permitted and prohibited activities, production safeguards, emergency contacts, and approval boundaries for higher-risk activity. This is where teams prevent ambiguity about what testers may do and when they must stop or escalate.
3. Reconnaissance and threat modeling
Reconnaissance gathers information within authorized boundaries. Threat modeling turns that information into likely attack paths and test priorities. The output is not just a list of discovered assets; it is a rationale for what will be tested more deeply and why.
4. Vulnerability analysis
The team identifies weaknesses and prioritizes validation based on likely exploitability and impact. This phase should connect raw observations to testable hypotheses, not simply reproduce scanner output.
5. Controlled exploitation
Controlled exploitation validates whether selected weaknesses can be used to bypass controls or create business impact within the rules of engagement. Evidence should prove the issue. More accurately, it should prove enough of the issue without causing unnecessary damage, excessive access, or avoidable exposure of sensitive data.
6. Controlled post-exploitation, where authorized
Some engagements allow limited post-exploitation analysis to understand impact, such as the extent of access or reachable systems. This should remain governed by explicit approval boundaries, evidence limits, and stop conditions. If it is not authorized, it should not be performed.
7. Reporting, remediation, and retesting
The final phase translates evidence into decisions. A useful report explains scope, methods, findings, severity, impact, proof, and remediation guidance. Retesting, when included in the engagement, validates whether fixes resolved the issue rather than assuming closure from a ticket update.
What Good Methodology-Backed Deliverables Look Like
A structured penetration test should produce more than a vulnerability list. Buyers and internal teams should be able to see the methodology in the artifacts.
Expected deliverables commonly include:
- signed scope and authorization;
- rules of engagement;
- methodology or standards used;
- assumptions, exclusions, and constraints;
- evidence collected for material findings;
- severity model and risk rationale;
- executive summary for leadership;
- technical findings for engineering teams;
- business impact explanation;
- remediation guidance;
- retesting plan and retest results, where included;
- evidence handling and retention expectations where applicable.
Use this checklist as a practical quality signal, not as an official certification checklist.
| Methodology-backed engagement checklist | Yes / No / Notes |
|---|---|
| Scope defines systems, applications, environments, accounts, and exclusions. | |
| Written authorization is documented before active testing. | |
| Rules of engagement identify allowed and prohibited activities. | |
| Test windows, escalation contacts, and stop conditions are agreed. | |
| Methodology is mapped to the target and objective, not named generically. | |
| High-risk actions require explicit approval before execution. | |
| Evidence standards are defined before testing begins. | |
| Sensitive data handling expectations are documented. | |
| Report includes objectives, scope, methods, findings, impact, and remediation guidance. | |
| Executive and technical audiences receive appropriate detail. | |
| Retesting is included, scheduled, or explicitly out of scope. | |
| Findings are assigned for remediation and tracked to closure. |
The strongest signal is basically traceability: each serious finding should connect back to scope, test method, evidence, impact, and remediation. If the report cannot show that chain, the engagement may have been technically useful but weak as assurance evidence.
Turning Penetration Test Results Into Ongoing Security and Compliance Evidence
The value of a penetration test depends on what happens after the report. Findings need owners, priorities, remediation decisions, and validation. Retesting provides evidence that fixes worked when it is part of the engagement.
Reports and retest evidence can also support audit readiness or customer security reviews, but they probably should not sit around as static PDFs disconnected from engineering and compliance workflows. The practical goal is to keep the evidence, map it to remediation work, and make it reusable when stakeholders ask what changed.
Ciphrix’s perspective is that security and compliance evidence should operate from living data and reusable controls rather than recurring document scrambles. After a methodology-backed test, that means treating scope, findings, remediation evidence, and retest outcomes as operational records, not one-time attachments.
