Teams map controls to reduce duplicated compliance work across frameworks, customer requirements, internal policies, and risk programs. But a fast mapping is only useful if it can be trusted, a weak mapping can make dashboards look complete while the underlying control does not satisfy the requirement, the evidence does not prove operation, or no one has approved the judgment.
Control mapping for automated compliance should therefore do more than connect one control name to many framework IDs. It should show why the control applies, what risk it addresses, what evidence proves it operated, how it is tested, who owns it, who reviewed it, and when it must be revalidated.
What is control mapping in compliance automation?
Control mapping is the structured linking of internal controls to external or internal obligations: frameworks, standards, regulatory requirements, customer commitments, policies, and risk requirements. NIST’s OSCAL guidance describes structured relationships among controls and authoritative sources, including supporting references and traceability metadata, which is the foundation for reusable mapping records in automated compliance programs (NIST OSCAL Layers and Models).
In an automated program, the map becomes the connective tissue between:
- the control library
- requirement coverage
- control owners
- evidence collection
- assessment or test procedures
- findings and exceptions
- reporting and audit review
A single internal control may support multiple obligations, but only where the requirement intent, scope, evidence, and testing align. A topic match is not enough. For example, two obligations may both relate to “access control,” but one may require privileged access approval while another expects periodic access review. One control may support both, one, or neither, depending on how it is designed and operated.
Why control mapping reduces duplicate compliance work
Where requirements overlap or have a documented relationship, structured mapping can reduce duplicated compliance-mapping effort and support coverage analysis across standards (NIST OSCAL Layers and Models). Instead of treating each framework as a separate project, teams can maintain a set of reusable internal controls and map them to the obligations they genuinely satisfy.
This is where common controls matter. NIST defines a common control as a security or privacy control inherited by multiple information systems or programs (NIST glossary). In practice, a centrally operated identity management process, logging platform, vendor review process, or incident response procedure may support several systems or compliance scopes.
The value is not that one control automatically satisfies every similar requirement. The value is that a well-documented relationship lets teams reuse the control record, evidence, and testing. Where the scope, period, and requirement intent align. The same mapping process also exposes gaps: a control may apply to production systems but not corporate SaaS tools, or evidence may show that a policy exists without proving that the control operated during the review period.
Automation helps by making these relationships easier to maintain: shared control libraries, recurring evidence workflows, owner assignments, review queues, dashboards, and reports. But reuse depends on defensible coverage, not keyword similarity.

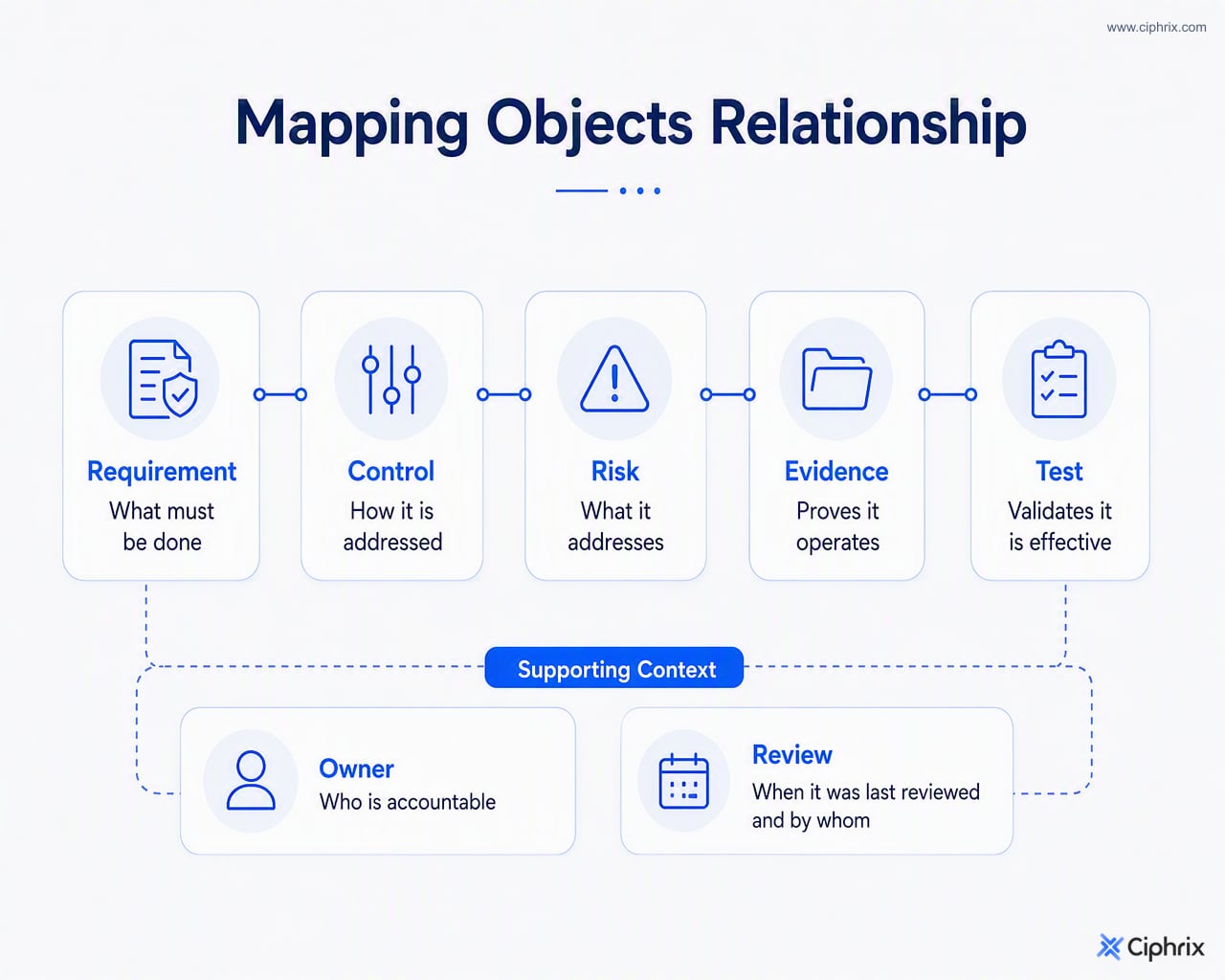

What actually gets mapped: requirements, controls, risks, evidence, and tests
A useful mapping system connects more than requirement IDs to control names. NIST’s OSCAL model supports structured links among control definitions, implementation information, assessment activities, evidence, findings, and risk remediation, which is why defensible mappings should preserve this context rather than flatten it into a spreadsheet cell (NIST OSCAL Layers and Models).
The core objects are:
| Object | What it means | Why it matters |
|---|---|---|
| Requirement | The obligation from a framework, standard, contract, regulation, policy, or risk program | Defines the outcome the organization must address |
| Control | The process, technical safeguard, approval, monitoring activity, or operational procedure used to meet the obligation | Shows how the organization intends to satisfy the requirement |
| Risk | The security, privacy, operational, or business risk the control reduces | Explains why the control exists and whether the mapped requirement is addressing the same concern |
| Evidence | Proof that the control exists and operated in the relevant scope and period | Supports reliance on the control beyond description or policy language |
| Test | The assessment procedure used to evaluate design or operating effectiveness | Determines whether the evidence and control operation support the mapped obligation |
Evidence and testing are not administrative extras. NIST notes that assessment procedures can be used to verify that controls are implemented, meet their stated objectives, and achieve intended security or privacy outcomes (NIST CSRC). A mapping that lacks evidence and testing may be useful for planning, but it is harder to rely on during review.

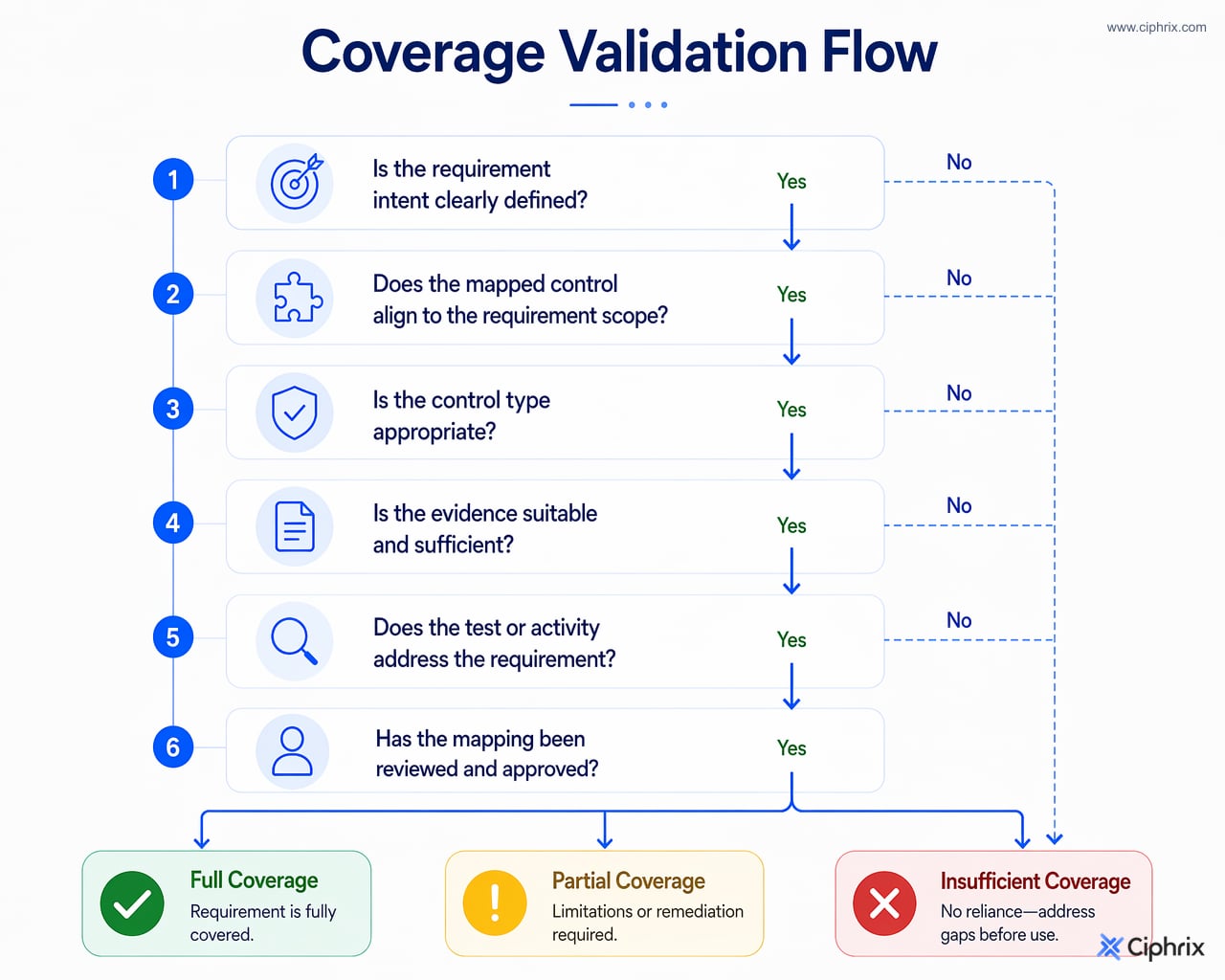

How to validate whether a control mapping is full, partial, or insufficient
Use full, partial, and insufficient coverage as an internal decision aid, not as an official audit classification or universal scoring model. The point is to force a reviewer to decide whether the mapped control actually satisfies the requirement intent.
| Coverage level | Use when | Typical consequence |
|---|---|---|
| Full coverage | The control directly satisfies the requirement intent, applies to the relevant systems or processes, has suitable evidence, and is tested at an appropriate cadence for the obligation and scope | The mapping can usually be reused, subject to review and current evidence |
| Partial coverage | The control satisfies part of the requirement but has a limitation: incomplete scope, weak evidence, missing test coverage, or a related but not identical objective | Document the limitation and add a compensating control, remediation item, or separate mapping |
| Insufficient coverage | The control does not satisfy the requirement intent, does not operate in the relevant scope, or lacks enough evidence or testing to support reliance | Do not rely on the mapping for coverage reporting until the gap is resolved |
A practical validation review should ask:
- What outcome is the requirement asking for?
Translate the obligation into an expected control outcome before matching it to an existing control. - What risk is the requirement trying to address?
If the requirement is about unauthorized privileged access, a general password policy may be related but may not address the same risk. - Does the control operate in the right scope?
Confirm the relevant systems, business units, data types, locations, vendors, and audit period. - Does the control type match the requirement intent?
A detective alert may not fully satisfy an obligation that expects preventive approval. An administrative policy may not prove technical enforcement. - Is the evidence suitable, current, complete, and tied to the control?
Evidence should show the control operated in the mapped scope and period. A screenshot, ticket export, configuration record, approval log, or test result may be useful only if it proves the specific control outcome. - Does the test validate the mapped obligation?
A test should assess the relevant aspect of the control. Testing that MFA is enabled for employees does not necessarily test whether privileged service accounts are controlled. - Who reviewed and approved the judgment?
Mapping sufficiency is a professional judgment. Document the reviewer, approval, assumptions, and limitations. - What would cause the mapping to change?
Record dependencies such as a specific identity provider, scope boundary, evidence source, or compensating control.
The discipline is simple. More accurately, it is simple to state: do not mark a mapping as reusable until the requirement intent, control design, evidence, test, scope, and reviewer decision all support that conclusion.
What an audit-ready control mapping record should include
An audit-ready mapping record is not a guarantee of audit acceptance, and this template is not a mandatory schema. It is a practical structure designed to make a mapping easier to review, reuse, and defend.
| Field | What to capture |
|---|---|
| Framework or obligation | The source being mapped, such as a standard, customer requirement, policy, or internal risk requirement |
| Requirement ID or name | The identifier or short name used by the obligation source |
| Requirement intent | The outcome the requirement is asking the organization to achieve |
| Control ID/name | The internal control being mapped |
| Control objective | The outcome the control is designed to achieve |
| Related risk | The risk the control reduces or monitors |
| Coverage level | Full, partial, or insufficient, using internal criteria |
| Coverage rationale | Why the control does or does not satisfy the requirement intent |
| Evidence source | System, repository, ticket queue, report, log, approval record, or other evidence location |
| Evidence freshness | How current the evidence must be for the scope and review purpose |
| Owner | The person or team accountable for operating the control |
| Test frequency/status | How the control is assessed and the current test result or status |
| Last review date | When the mapping was last validated |
| Approver | The person or role that approved the mapping decision |
| Change history | Version notes, scope changes, exceptions, or reviewer comments |
These fields matter for different audiences. Auditors and reviewers need to see rationale, evidence, ownership, and review history. Automation systems need structured fields to route evidence requests, assign tasks, track freshness, and report gaps. Control owners need to know which mappings can be reused and which require remediation before being relied on.
Worked example: mapping one common control across multiple obligations
The following example is illustrative and organization-dependent. It avoids exact framework clause language; any real mapping should be reviewed against the applicable requirement text, audit scope, and evidence.
Internal control: MFA-01 — Multi-factor authentication for privileged administrative access Control objective: Reduce the risk of unauthorized administrative access to in-scope production systems. Control owner: Identity and Access Management Lead Reviewer: GRC Manager Last review: 2026-07-15 Change note: Updated scope after adding the production analytics environment.
| Mapped obligation | Coverage | Rationale | Evidence | Test approach | Limitation or next action |
|---|---|---|---|---|---|
| External assurance requirement for strong authentication on privileged access | Full | MFA is enforced through the central identity provider for named privileged administrators on in-scope production systems | Identity provider configuration export; privileged group membership list; access policy record | Sample privileged users and verify MFA enforcement and group membership during the review period | Revalidate when new admin groups or production systems are added |
| Internal security policy requiring MFA for all workforce access | Partial | The control covers privileged production access, but the policy applies to all workforce access, including non-production and business applications | Same as above, plus workforce application inventory | Compare MFA enforcement against full application inventory | Add separate mappings or controls for workforce SaaS and non-production environments |
| Customer security questionnaire asking whether administrative access is protected by MFA | Full, for stated scope | The control supports a “yes, for in-scope production admin access” response if the answer clearly states scope | MFA policy, configuration export, admin access list | Verify questionnaire response against current scope and evidence | Do not use to answer broader questions about all users or all applications |
| Internal risk requirement to reduce account takeover risk across high-risk systems | Partial | The control reduces privileged account takeover risk but may not cover all high-risk systems or non-human accounts | High-risk system inventory; MFA enforcement records; exception register | Test MFA coverage for sampled high-risk systems and review exceptions | Identify service accounts, break-glass accounts, and unmanaged systems |
| Requirement for periodic review of privileged access | Insufficient | MFA enforcement does not prove that access rights are periodically reviewed or removed when inappropriate | Not applicable for review objective | Not applicable; requires access review test | Map to a separate privileged access review control |
The example shows why one control can be reusable without being universal. This is the bit people sometimes overread. MFA enforcement may fully support an obligation focused on privileged authentication, partially support a broader access-risk requirement, and fail to satisfy a requirement about periodic access review. The difference is not the control name; it is the requirement intent.
How automation supports control mapping without replacing review
Automation is well suited to structured control and assessment information. NIST’s OSCAL FAQ notes that machine-readable representations of controls, implementations, and assessment methods can support security automation and interoperability, and that assessment observations may include human- or machine-generated evidence (NIST OSCAL FAQ).
In control mapping, automation can help teams:
- maintain a reusable control library
- link controls to multiple obligations
- attach evidence to mapped controls
- track evidence freshness and missing artifacts
- assign owners and reviewer tasks
- schedule assessments or tests
- surface unmapped requirements and partial coverage
- maintain version history and review records
- produce structured reports for internal and external review
Automation basically should not decide sufficiency on its own. Human review is still needed to interpret requirement intent, confirm scope, judge evidence quality, approve partial mappings, resolve exceptions, and assess whether framework, system, or policy changes affect prior decisions.
AI-assisted mapping should be treated the same way. It may suggest relationships or identify overlap, but suggested mappings still need rationale, evidence validation, reviewer approval, and documented limitations before they are used for compliance reporting.
How to maintain control mappings over time
A mapping is reliable only while the requirement, control, current scope, current evidence, and test remain aligned. NIST’s Risk Management Framework treats control assessment and continuous monitoring as ongoing risk-management activities with responsibility and accountability for implemented and inherited controls (NIST SP 800-37 Rev. 2).

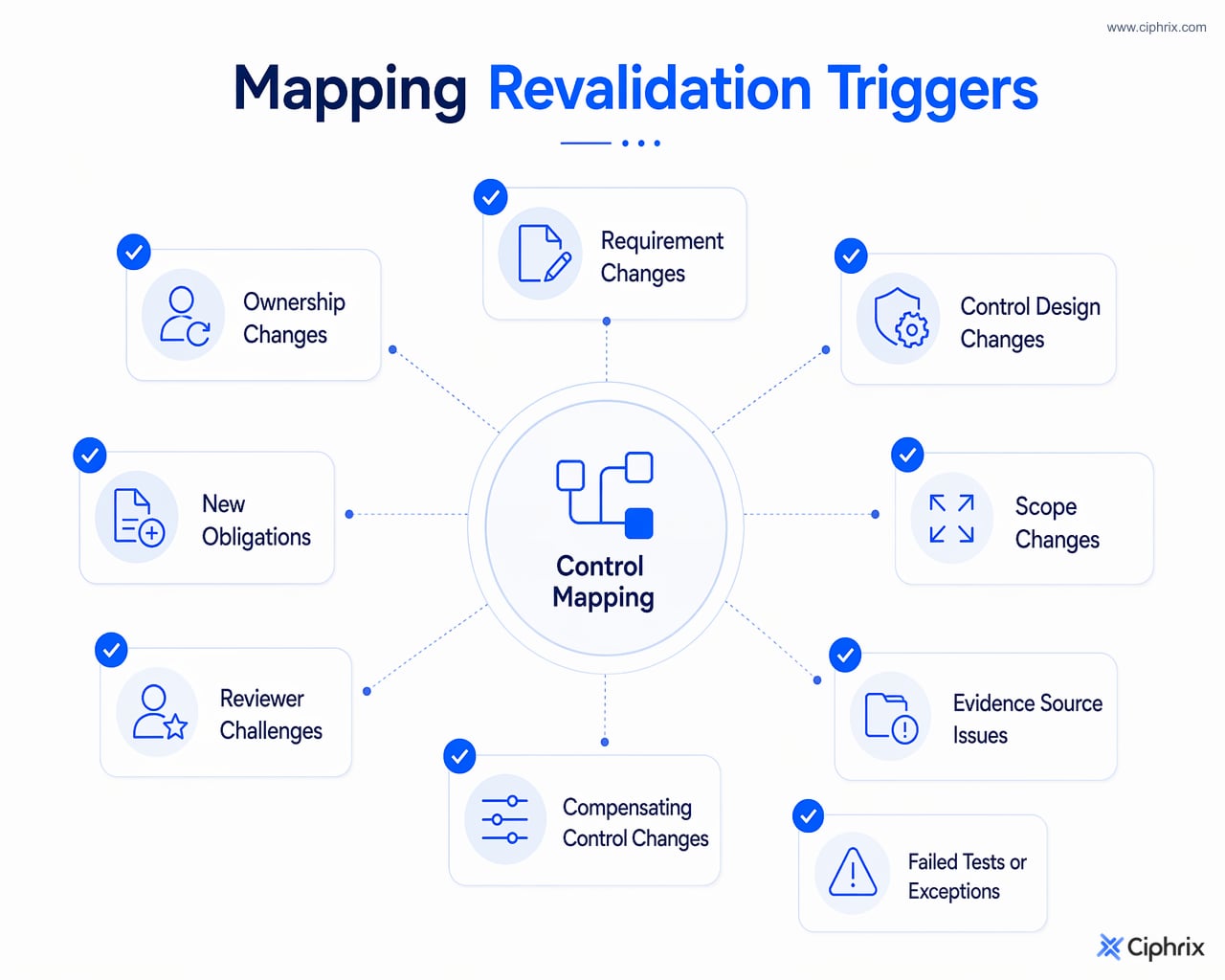

Revalidate affected mappings when:
- a framework, standard, customer requirement, or internal policy changes
- a system, process, or control design changes
- audit or certification scope changes
- evidence sources move, degrade, or stop being collected
- a test fails or an exception is identified
- ownership changes
- a new framework or obligation is added
- a reviewer or auditor challenges the rationale
- a compensating control is introduced or retired
Good governance does not need to be complex, but it must be explicit. Assign control owners and mapping approvers. Document assumptions and limitations. Require approval for new or changed mappings. Keep version history. Track partial coverage and exceptions. Retire stale mappings instead of leaving them in dashboards. When a mapping changes, update the linked evidence and test procedure as well.
Turning control mapping into an operational compliance system
Control mapping should not remain a one-time spreadsheet created for an audit cycle. It should become a living operational record connected to controls, risks, evidence, owners, tests, approvals, exceptions, and change history.
The goal is not simply faster mapping. The goal is reusable, reviewable, and defensible compliance operations: mappings that show why a control applies, where it does not, what evidence supports it, and who approved the judgment.
